Product Details:
Payment & Shipping Terms:
|
| OBD2 Male Plug: | Standard | Pins Of OBD2 Male Plug: | Copper, Nickel-plated Or Gold-plated |
|---|---|---|---|
| Pins At The Back: | Straight | Housing Material: | PA66 |
| Working Temperature: | −25℃ ~ +100℃ | Material Of The Enclosure: | ABS |
| Highlight: | OBD2 enclosure,ELM327 OBDII enclosure,OBD2 male plug |
||

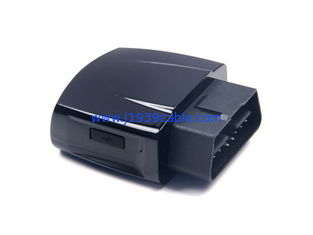

OBD2 OBDII Enclosure with OBD2 Male Plug for Car OBD2 GPS Tracker
Specification
| OBD2 male plug | standard |
| Pins of OBD2 male plug | copper, nickel-plated or gold-plated |
| Pins at the back | straight |
| Number of pins | 16 |
| Material of OBD2 male plug | PA66 |
| Material of the OBD2 enclosure | ABS |
| Dimension of the OBD2 enclosure | 50*48*26 mm |
| Surface treatment of the OBD2 enclosure | varnished, UV-coated |
| Cut-out | micro USB connector, SIM card slot, GSM indicator, OBD/GPS indicator |
| Contact Resistance | 3 ohm max. |
| Insulation Resistance | 5M ohm min. |
| Working Temperature | −25℃ ~ +100℃ |
| Warranty | 1 year |
We made the plastic mold of the OBD2 OBDII enclosure and the OBD2 OBDII male plug by ourselves because we have a full set of machines and equipments and an excellent team of staff for making plastic molds. We also have injection molding machines which can manufacture these OBD2 OBDII enclosures and the OBD2 OBDII male plugs according to the mold.
The cut-outs are shown in the picture below.
This OBD2 OBDII enclosure is with snaps and press-fit style. Press the top and the bottom of the OBD2 OBDII enclosure to make them attach to each other.
Below is the dimension of the OBD2 OBDII enclosure.
Application
This OBD2 OBDII enclosure can be used to assemble OBD2 GPS trackers, telematics devices, M2M devices, IoV (Internet of Vehicles) devices and fleet management devices.
