Product Details:
Payment & Shipping Terms:
|
| Pins Of OBD2 Male Plug: | Copper, Nickel-plated Or Gold-plated | Terminals Of OBD2 Female Connector: | Copper, Nickel-plated Or Gold-plated |
|---|---|---|---|
| Testing: | 100% Open, Short And Miss-wire Testing | Wire: | 26AWG, Pure Copper |
| Overmold Of OBD2 Male Plug: | Right Angle 90-degree | Material Of Overmolded Part: | PVC |
| Highlight: | OBD splitter,OBDII splitter cable,J1962 Y splitter |
||
OBD2 OBDII 16 Pin Right Angle Male to Dual Female Round Split Y Cable
Specification
| OBD2 male plug | standard |
| Pins of OBD2 male plug | copper, nickel-plated or gold-plated |
| Overmold of OBD2 male plug | right angle 90-degree |
| OBD2 female connectors | standard |
| Terminals of OBD2 female connectors | copper, nickel-plated or gold-plated |
| Overmold of OBD2 female connectors | straight |
| Material of overmolded part | PVC |
| Cable shape | round |
| Wire | 26AWG, pure copper |
| Material of OBD2 male and female connectors | PA66 |
| Pin assignment or pin out | customized |
| Cable length | customized |
| Contact Resistance | 3 ohm max. |
| Insulation Resistance | 5M ohm min. |
| Working Temperature | −25℃ ~ +85℃ |
| Testing | 100% open, short and miss-wire testing |
| Testing Voltage | DC300V 5M ohm/10ms |
| Warranty | 1 year |

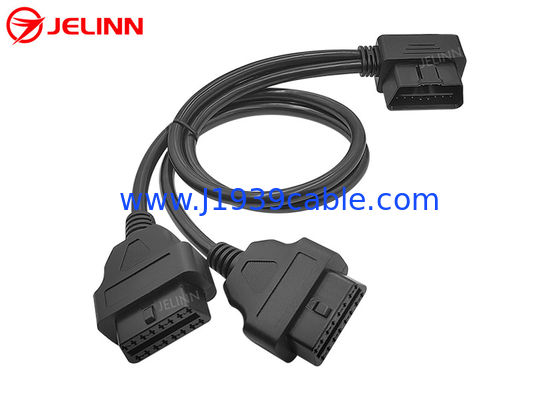

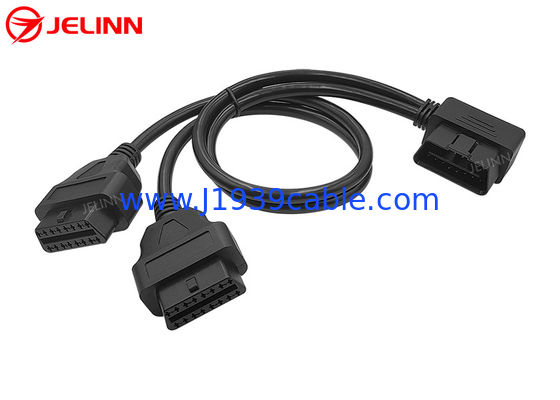

This is a Y cable with 3 ends of an OBD2 male plug and two OBD2 female connectors.
The OBD2 OBDII female connector is with quality endurable terminals, which are more suitable for a test or diagnostic environment where the devices (connected to the OBD2 female connector) are plugged and unplugged frequently.
The overmolded plastic injection part at the ends of 16-Pin OBD2 OBDII female connectors makes the cable come out straight.
Pin assignment or pin out
The pin assignment or pin out can be like this:
| OBD2 male plug | OBD2 female connector 1 | OBD2 female connector 2 |
| 2 | 2 | 2 |
| 5 | 5 | 5 |
| 6 | 6 | 6 |
| 7 | 7 | 7 |
| 10 | 10 | 10 |
| 14 | 14 | 14 |
| 15 | 15 | 15 |
| 16 | 16 | 16 |
As to this pin out, the black wires in both round cables are connected to Pin 5. There are 8 pins wired, so there are 8 wires of 26AWG in both round cables.
The pin assignment or pin out can also be like this:
| OBD2 male plug | OBD2 female connector 1 | OBD2 female connector 2 |
| 1 | 1 | 1 |
| 2 | 2 | 2 |
| 3 | 3 | 3 |
| 4 | 4 | 4 |
| 5 | 5 | 5 |
| 6 | 6 | 6 |
| 7 | 7 | 7 |
| 8 | 8 | 8 |
| 9 | 9 | 9 |
| 10 | 10 | 10 |
| 11 | 11 | 11 |
| 12 | 12 | 12 |
| 13 | 13 | 13 |
| 14 | 14 | 14 |
| 15 | 15 | 15 |
| 16 | 16 | 16 |
As to this pin out, all 16 pins of the OBD2 OBD male and female connectors are wired, so there are 16 wires of 26AWG in both round cables.
Application
This Y cable is used to connect telematics, M2M devices, IoV (Internet of Vehicles) devices, fleet management devices, OBD2 GPS trackers or car performance tuning tools to vehicles' OBD2 female diagnostic ports.
There is only one OBD2 female diagnostic port in each vehicle. If you would like to connect two telematics or IoV devices with OBD2 male ports in a vehicle, this OBD2 OBDII male to dual female splitter Y cable can help do this. This Y cable splits the original OBD2 female diagnostic port. Insert the OBD2 male plug of this splitter Y cable into the OBD2 female diagnostic port in the vehicle. Check whether the telematics or IoV devices can be compatible with the vehicle’s voltage (12V or 24V). It is important! Turn off the engine and then connect these two telematics or IoV devices to the two OBD2 female connectors respectively.
This cable can also be used to connect OBD2 diagnostic devices or scanners or fault code readers.
Sending an inquiry
If you haven’t found or don’t have time to look for the OBD2 OBDII, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors in our website, feel free to let us know what OBD2 OBDII, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any OBD2 OBDII, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors for you.
