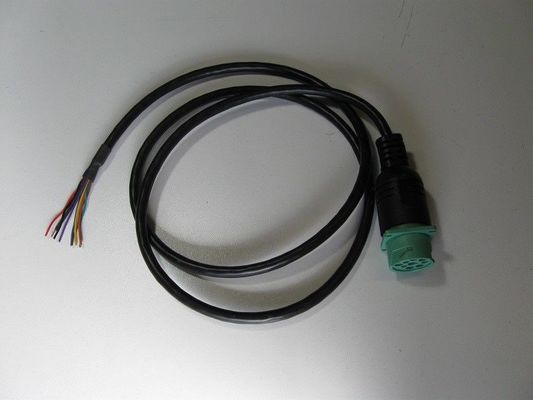

Green Type 2 J1939 Deutsch 9 Pin Male Receptacle to Open End Cable
Specification
| 9-Pin J1939 male receptacle | equivalent of Deutsch HD10-9-1939P-P080 |
| Type of 9-Pin J1939 male receptacle | Type 2 |
| Color of 9-Pin J1939 male receptacle | Green |
| Wire | 20AWG, pure copper |
| Material of 9-Pin J1939 male receptacle | PA66 + glass fiber |
| Pin assignment or pin out | customized |
| Cable length | customized |
| Pins or terminals | copper, nickel-plated or gold-plated |
| Contact Resistance | 3 ohm max. |
| Insulation Resistance | 5M ohm min. |
| Working Temperature | −25℃ ~ +85℃ |
| Testing | 100% open, short and miss-wire testing |
| Testing Voltage | DC300V 5M ohm/10ms |
| Warranty | 1 year |
The end of Deutsch 9 Pin J1939 male plug can be overmolded or not, according to your needs. If the ends are overmolded, the cables are more sturdy and durable. If not overmolded, the price can be lower because the raw material and labour cost is saved.
Overmolded
Not overmolded
The Deutsch 9 Pin male connector of this cable is Type 2, so its Pin F is with smalller diameter as Pin C and Pin J.
Pin assignment or pin out
Generally speaking, all 9 pins of the J1939 male receptacle are wired, so there are 9 wires of 20AWG in the cable. If there is no need for all 9 pins to be connected, the price can be lower because the raw material and labour cost can be lower.
The pin assignment or pin out can also be customized according to your needs.
Application
This Green Type 2 J1939 Deutsch 9 Pin Male Receptacle to Open End Cable is used for testing purposes.
